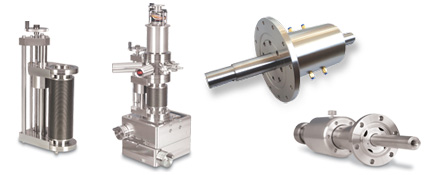

Sample Manipulation & Motion:
Many different devices are associated with sample manipulation: motion feedthroughs, sample transfer, translation devices, xyz manipulation, z-only manipulation, sample rotation, rotary drives, linear drives, wobble sticks, etc. All cover different aspects of the same basic requirement— to mechanically move an object that is inside a vacuum chamber and under vacuum. Such devices provide precise, repeatable movement or coarse positioning and may provide rotary motion, linear motion, or a combination of both.
The most complex devices give motion in three axes and rotations around two of those axes. The mechanical movement may be generated by two basic mechanisms: a vacuum-tight seal on a mechanical device that moves through the vacuum wall or a magnetic coupling that transfers motion from air-side to vacuum-side.
As always, if you don't see a sample manipulation or motion device listed, contact us with your specific process requirements.
If you would like to receive a UHV Design catalog fully illustrating all the products in this section, please continue to our Literature Download Center page.
For a listing of Frequently Asked Questions (FAQs) about Manipulation & Motion please see this link: Manipulation & Motion FAQ.
